SUBROSA FRAMES.

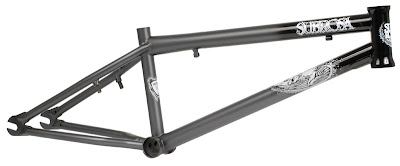

ALAMEDA FRAME
Material : 4130 Sanko chromoly, double butted top tube and down tube, tapered seat and chain stays
Top Tube: 20″, 20.5″, 20.75″, 21″
Chain Stay: 13.75″ with room to remove wheel, 13.5″ fully slammed
Head Tube: 76º, integrated, CNC machined, heat treated with removable gyro tabs
Seat Tube: offset from 74º to 69º, internally and externally butted, 7.5″ height, integrated seat clamp w/ replaceable nut and bolt
BB Type: mid, heat treated, specifically designed to not hang up during grinds
BB Height: 11.6″
Low profile removable brake mounts
Dropouts: 5mm thick for 14mm axle, heat treated and CNC lightened
Colors: matte black, matte white, matte red, phosphate raw
Weight: 4.8 lbs for 20.75″ top tube


NOVUS FRAME
Lightweight and affordable frame Material: 4130 chromoly, double butted top tube and down tube
Top Tube: 20.5″, 21″
Chain Stay: 13.75 with room to remove wheel, 13.5 fully slammed
Head Tube: 75 degrees, integrated, CNC machined
Seat Tube: 71 degrees, 8.5″ height
BB Type: mid, externally and internally CNC machined
BB Height: 11.6″
Dropouts: 5mm thick for 14mm axle
Weight: 5.0 lbs for 20.5 top tube
Colors: gloss black to matte black, gloss red to matte red

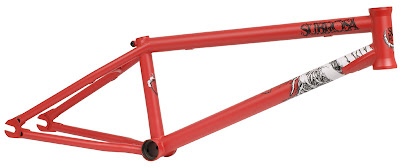

PANDORA FRAME
Material: 4130 Sanko chromoly, double butted top tube, down tube, seat stays
Top Tube: 20″, 20.5″, 20.75″, 21″, 21.5″
Chain Stay: 13.75″ with room to remove wheel, 13.5″ fully slammed
Head Tube: 75˚, integrated, CNC machined, heat treated
Seat Tube: 71˚, internally and externally butted, 8.5″ height, integrated seat clamp w/ replaceable nut and bolt
BB Type: mid, heat treated, internally and externally CNC machined
BB Height: 11.6″
Low profile removable brake mounts
Dropouts: 5mm thick for 14mm axle, heat treated and CNC lightened
Colors: matte black, matte white, matte red, phosphate raw
Weight: 4.8 lbs for 20.5″ top tube
Available in 18″ version



ARMADA FRAME
Eli Platt signature model Material : 4130 Sanko chromoly, double butted top tube, ovalized, butted down tube to prevent dents, double butted seat stays
Top Tube: 20″, 20.5″, 20.75″, 21″
Chain Stay: 13.75 with room to remove wheel, 13.5 fully slammed
Head Tube: 75 degrees, integrated, CNC machined, heat treated with removable gyro tabs
Seat Tube: 71 degrees, internally and externally butted, 8.0″ height, integrated seat clamp w/ replaceable nut and bolt
BB Type: mid, heat treated, specifically designed to not hang up during grinds
BB Height: 11.6″
Dropouts: 5mm thick for 14mm axle, heat treated and CNC lightened
Weight: 4.9 lbs for 20.5 top tube
Colors: matte black, matte white, matte red, phosphate raw
Low profile removable brake mounts

SUBROSA FORK.


ALAMEDA FORK
100% heat treatment after welding
4130 Sanko chromoly butted and tapered tubing
5mm thick dropouts, 3/8 only
24mm offset for the ultimate in quick and responsive steering
CNC machined 1pc steer tube with cut lines, recessed threads, and built in integrated race
Lightweight 6061 alloy top cap
Weight: 31.4 oz
Colors: matte black, matte white, matte red, phosphate raw
Limited lifetime warranty


PANDORA FORK
Ryan Sher signature model
100% heat treatment after welding
4130 Sanko chromoly butted and tapered tubing
5mm thick dropouts, 3/8 only
30mm offset for responsive steering
CNC machined 1pc steer tube with cut lines, recessed threads, and built in integrated race
Lightweight 6061 alloy top cap
Weight: 32.1 oz
Colors: matte black, matte white, matte red, phosphate raw
Available in 18″ version see website for specs
Limited lifetime warranty

SUBROSA HANDLEBAR.


SUBROSA HANDLEBAR
100% heat treatment after welding
13 butted chromoly 7.25″ rise / 7.5“rise
25?wide
10 degree back sweep
3 degree up sweep
Machined guides for ease and accuracy of cutting
Weight: 7.25″ : 22.7 oz / 7.5″ : 23.4 oz
Colors: black, white, matte raw


PANDORA HANDLEBAR.
Ryan Sher signature model
100% heat treatment after welding
13 butted chromoly
7.75″ rise / 8.0″ rise / 8.25″ rise / 8.5″ rise
28″ wide
12 degree back sweep 1 degree upsweep
Machined guides for ease and accuracy of cutting
Weight: 7.75″ : 25.3 oz / 8.0″ : 25.6 oz / 8.25″ : 25.9 oz / 8.5″ : 26.2 oz
Colors: gloss black / matte black, gloss red / matte red

วันเสาร์ที่ 18 กรกฎาคม พ.ศ. 2552

ALAMEDA GRIP.


ALAMEDA GRIP
Krayton rubber. 35 durometer
Medium circumference
150mm length
Subrosa Nylon Bar Ends included
Colors: black, white, red, clear, clear black

SUBROSA NYLON BAR ENDS.


SUBROSA NYLON BAR ENDS.
Injection molded nylon with Subrosa logo
Economical and lightweight
Fits most bars
Weight: .5 oz each
Colors: black, white, red, clear, gray marble, red marble

SUBROSA PIVOTAL POST.


SUBROSA PIVOTAL LAYBACK POST
10 degree offset for better seat position
Slim, clamping area
6061 forged alloy
Size: 25.4mm diameter, 115mm length
Weight: 3.6 oz
Colors: matte black, matte white, matte red


SUBROSA PIVOTAL POST.
Slim, clamping area
6061 forged alloy
Size: 25.4mm diameter, 115mm length
Weight: 3.6 oz
Colors: matte black, matte white, matte red

SUBROSA PIVOTAL SEAT.


SUBROSA PIVOTAL SEAT.
Slim design with low profile foam
Tone on tone screen printing
Hollow bolt for extra weight saving
Weight: 9.6 oz
Colors: black, white, red
